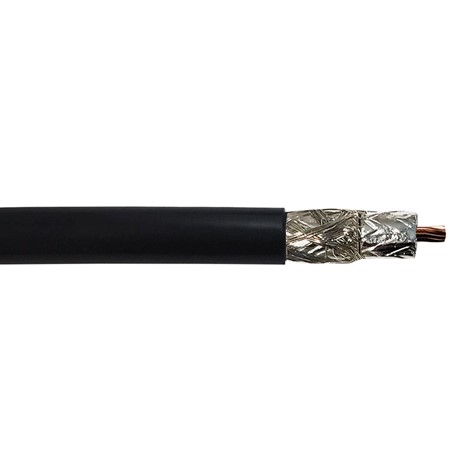

LLR-240 50 Ohm Coax Bulk Cable

Internal Reference :
Description :

  • Length
    • 100'
    • 250'
    • 500'
    • 1000'

This combination does not exist.

160.00 $ 160.0 CAD 160.00 $

0.00 $

Availability: In Stock
Quantity:



LMR 240 COAX LOW-LOSS 50 OHM COAX

ANTENNA 240 Series LOW-LOSS 50 OHM RF Transmission Coaxial Cable

Utilized in numerous applications where loss and performance supersede traditional RG58, RG8, RG213, RG223, and RG214 coaxial cables

Applications:   Mobile phone, Wi-Fi, Broadband, Satellite Antennas, Terrestrial Microwave, Medical, Military, Traffic Control, and Land Mobile Radio

Construction Specifications:



     Material

   Diameter
 Inner conductor               Solid Copper  0.056" Nom.
 Dielectric   Foamed Polyethylene   Bonded Aluminum Foil + Tinned    0.150" Nom.
 Outer Conductor   Copper Braid  0.178" Nom.
 Jacket   Black Polyethylene  0.240" Nom.


Electrical Properties:

  Capacitance

 24.3 pF/ft

  Impedance

50 Ohms

  Velocity

84%

  Inner Conductor DC Resistance

3.20 (Ohms/1000ft)

  Outer Conductor DC Resistance

  3.89 (Ohms/1000ft)

  Shielding Effectiveness

90 dB

  Jacket Spark

5,000 VAC

  Cutoff Frequency

31 GHz

  Peak Power

5.6 kW

  Voltage Withstand

1,500 VDC


Mechanical & Envionmental Properties:

  Minimum Bend Radius                0.75"
  Storage Temperature    -94°F to 185°F
  Installation Temperature   -40°F to 185°F
  Operating Temperature   -40°F to 185°F

 Attenuation & Average Power (68°F):

  Frequency (MHz)      Typical Attenuation (dB/100ft)      Average Power (kW)

30

1.30

1.49

50

1.70

1.15

150

3.00

0.66

220

3.70

0.54

450

5.30

0.38

900

7.60

 0.26

1500

 9.90

0.20

1800

 10.90

 0.18

2000

 11.50

0.17

2500

 12.90

 0.15

5800

 20.40

0.10


Specifications

Length 100' or 250' or 500' or 1000'
