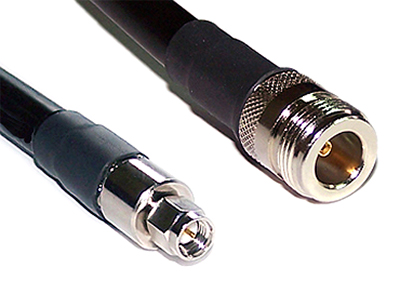

LLR-400 N-Type Female to SMA Male Low-Loss Cable

Internal Reference :
Description :

  • Length
    • 6'
    • 10'
    • 15'
    • 25'
    • 35'
    • 50'
    • 75'
    • 100'
    • 125'

This combination does not exist.

49.00 $ 49.0 CAD 49.00 $

0.00 $

Availability: In Stock
Quantity:



LMR-400 N-Type female to SMA Male Low-Loss Cable

High quality fully tested N-Male to N-Male cable assemblies featuring high performance low loss 400-Series coax cable.

Description:

  • Made with high performance, high quality 400-series Low-Loss 50 ohm RF coax cable
  • Excellent low loss characteristics
  • Each assembly is fully tested ensuring the highest quality
  • Custom cable lengths available
  • Adhesive heat shrink added on either end for a weather tight seal
  • Heavy duty connectors allow for optimum durability and connectivity
  • Connectors:   1 x N-Type Female
                             1 x N-Type SMA Male

Ideal for:

  • Drop-in replacement for RG-8/9913 Air-Dielectric type Cable
  • Jumper Assemblies in Wireless Communications Systems
  • Short Antenna Feeder runs
  • Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable

LMR®-400 Flexible Low Loss Communications Coax   LMR® standard is a UV Resistant Polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than air-dielectric and corrugated hard-line cables. Size for size LMR has the lowest loss of any flexible cable and comparable loss to semirigid hard-line cables.

Specifications:

  • RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer conductor is rated conservatively at > 90 dB (i.e. >180 dB between two adjacent cables).
  • Weatherability: LMR-400 cables designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in excess of 20 years.
  • Flexibility and bendability are hallmarks of the LMR- 400 cable design. The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.
  • Low Loss is another hallmark feature of LMR-400.



These are custom made cables. Cablek stocks the necessary components to manufacture all configurations and lengths. Email us with your requirements.


Specifications

Length 6' or 10' or 15' or 25' or 35' or 50' or 75' or 100' or 125'
