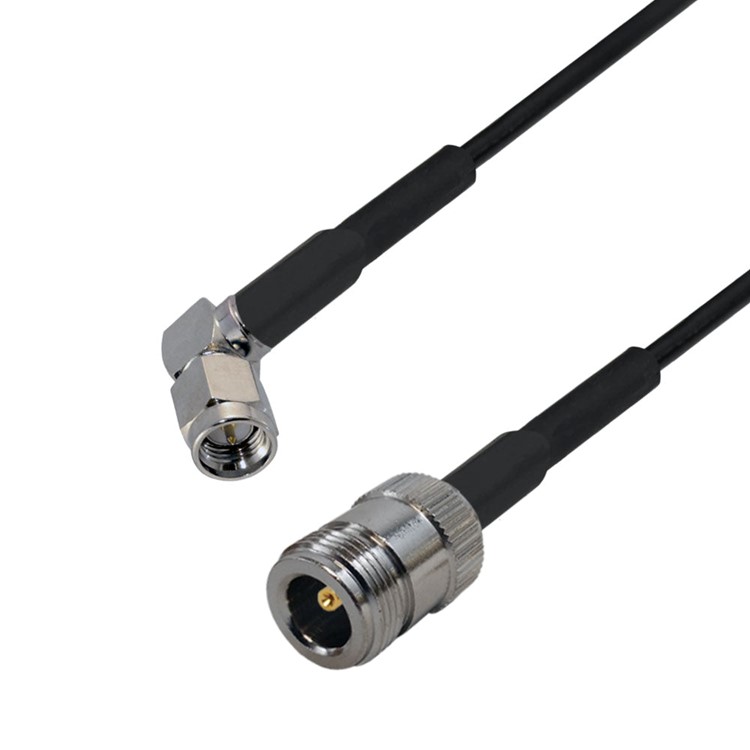

LLR-195 N-Type Female to SMA (Right Angle) Male Cable

Internal Reference :
Description :


    This combination does not exist.

    0.00 $ 0.0 CAD 0.00 $

    0.00 $

    Availability: In Stock

    Internal Reference: LLR195-NFSMARAM-X

    LL-195 N-Type Female to SMA Right Angle Male Cable

    50 Ohm Coaxial Antenna Cables

    N-Type Female to SMA Right Angle Male

    Description:   Constructed of premium RF195 low-Loss 50 ohm RF outdoor coaxial cable.
    Adhesive heat shrink added on either end for a weather tight seal.
    Heavy duty connectors allow for optimum durability and connectivity.

    1 x N-Type Female
    1 x SMA Right Angle Male


    • Made with high performance, high quality 195-series coax cable
    • Excellent low loss characteristics
    • Each assembly is fully tested ensuring the highest quality
    • Widest selection of lengths and connector styles
    • Custom cable lengths available


    • Wireless LAN Devices
    • Wi-Fi Radios
    • External Antenna Applications
    • Wireless OEM Applications
    • RF Voice/Video/Data

    These are custom made cables. Cablek stocks the necessary components to manufacture all configurations and lengths. Email us with your requirements.

        Cable Specifications

    • Number of Conductors: 1
    • AWG. Size: 19 Solid 0.037 Bare Copper
    • Nominal D.C.R.: 7.6
    • 7.6 Ohms/M' (24.9 Ohms/km)
    • Insulation: Gas Injected Foamed HDPE
    • Nominal Core O.D.: 0.110"
    • Nominal O.D.: 0.195"
    • Shield Material: Duofoil + 90% tinned copper braid
    • Shield Nominal D.C.R.: 4.2 Ohm/M' (13.8 Ohm/km)
    • Jacket: PVC jacketed 100% sweep tested
    • Nominal Impedance: 50 Ohms
    • Nominal Velocity of Propagation: 77%
    • Nominal Capacitance: 24.3 pF/ft.
    • RoHS Compliant

    *Actual product may vary from picture.
