FULLY PINNED VGA MM 50FT

https://www.cablek.com/web/image/product.template/45906/image_1920?unique=4baf157

0.00 $ 0.0 CAD 0.00 $

0.00 $

Select to see options

This combination does not exist.


Internal Reference: MX2-MM-50FP

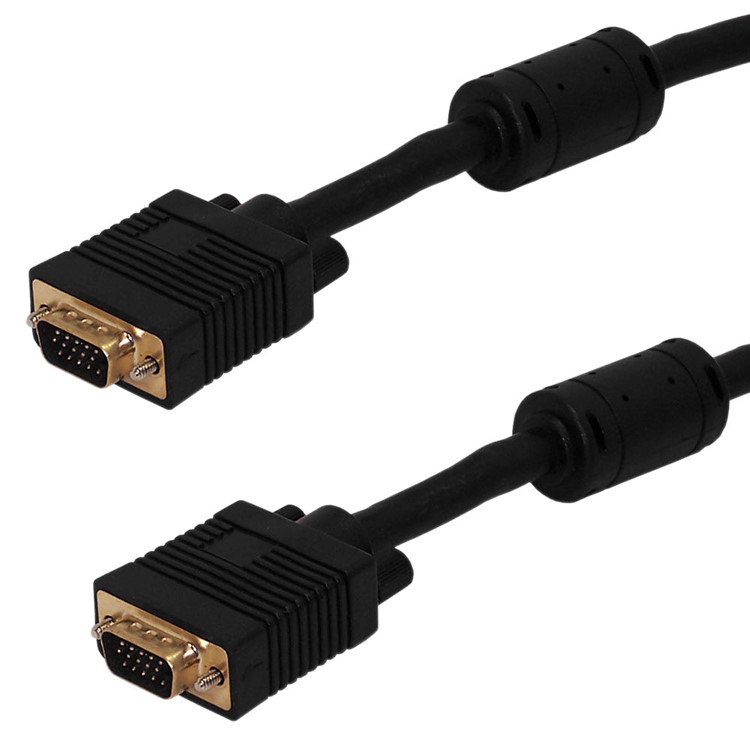

Fully Pinned SVGA HD15 Male to Male Cable CL2/FT4 – 15,2 m (50')

This SVGA/UXGA cable consists of a HD15 VGA male on one end and a HD15 VGA male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as monitors/projectors.

Physical Characteristics
Color Black
Connector Plating Gold
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 5 - 24AWG Pairs, 2 - 24AWG Conductors
Cable Diameter 9.0 mm
Shielding 85% Copper Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Connector A SVGA HD15 Male
Connector B SVGA HD15 Male
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Approvals
c(UL)us Approved Cable
Environmental
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1
Contents
Included in Package 1 - Cable
Cable Weight   50'   4.65 lbs
Warranty Limited Lifetime
