NEMA 5-15P to NEMA L5-30R Power Cable - 14AWG

Internal Reference :
Description :


    This combination does not exist.

    0.00 $ 0.0 CAD 0.00 $

    0.00 $

    Availability: In Stock

    Internal Reference: PCC-515PL530R-1

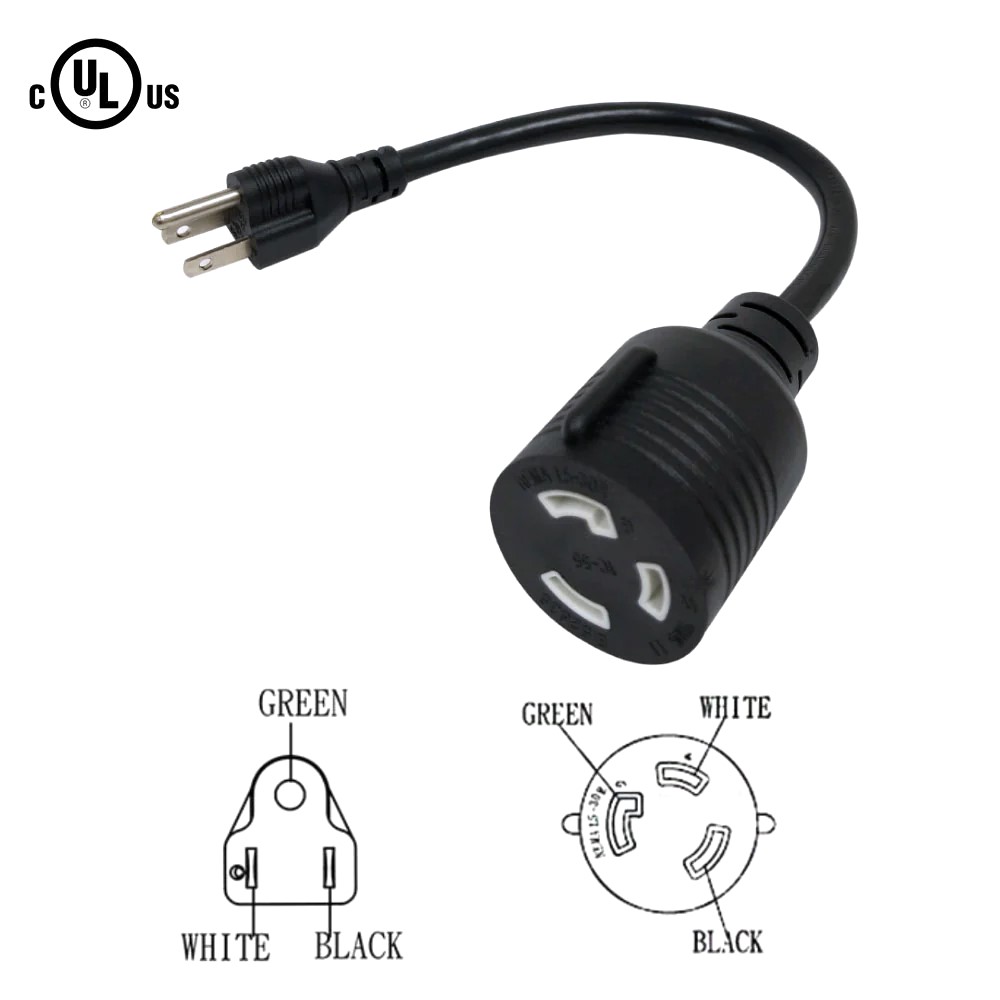

    NEMA 5-15P to NEMA L5-30R Power Cable - 14AWG

    This power cord consists of a 5-15P male on one end and a L5-30R female on the other end. It is typically used as an adapter cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

    Physical Characteristics
    Cable Length 1 foot [0.3m]
    Color Black
    Number of Conductors 3 Conductor
    Wire Gauge 14 AWG
    Jacket Heavy Duty SJT
    Jacket Material 100% Virgin PVC - Polyvinyl Chloride
    Jacket Fire Rating FT2
    Strain Relief Molded 100% Virgin PVC
    Temperature Rating -20℃ to 105℃
    Connector A NEMA 5-15P
    Connector B NEMA L5-30R
    Power Rating 15 Amp / 125 Volt
    5-15P c(UL)us, CSA
    L5-30R c(UL)us
    Cable c(UL)us, CSA
    ISO ISO 9001:2000, ISO 14000
    RoHS Yes
    Reach Yes
    Conflict Minerals Yes
    Packaging Information
