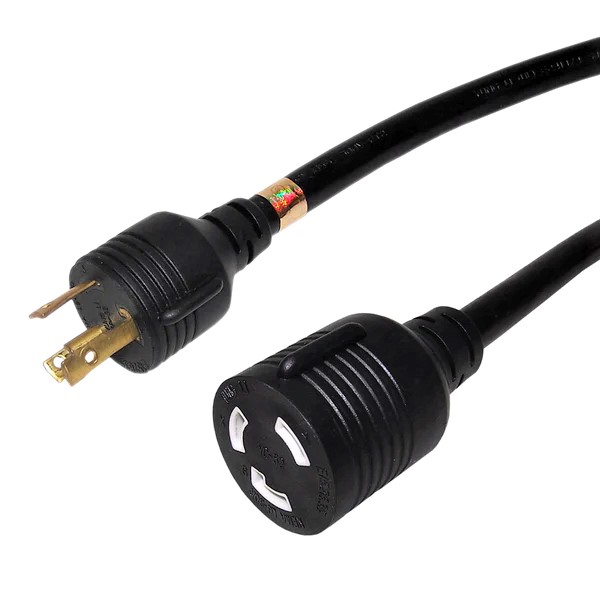

Power Cord NEMA L6-30P to NEMA L6-30R

Internal Reference :
Description :
#CABLEK:

PCC-L630PL630R-15

  • Length
    • 15'

This combination does not exist.

0.00 $ 0.0 CAD 0.00 $

0.00 $

Availability: In Stock
Quantity:

Internal Reference: PCC-L630PL630R-15



NEMA L6-30P to NEMA L6-30R Power Cords

These power cords are used to connect a 30 amp power cord to a power source and can have a maximum rating of up to 250V, 30A. Locking plugs keep the power cable securely connected to the power source, preventing any unwanted power losses to vital equipment due to a loose cord.

  • Constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds
  • Premium quality connectors ensure a snug fit into PDU receptacles
  • Wire jackets and connector moldings are manufactured with ONLY 100% virgin PVC compound which yields better quality and flexibility
  • Each assembly is 100% continuity and HVT (High Voltage) tested and inspected
  • Fully manufactured in a UL approved, ISO 9001:2000, ISO 14000 and Sony green facility
  • All cables are 100% RoHS and REACH compliant
  • Lifetime manufacturers warranty

Specifications

  • Gauge: 3C 10 AWG
  • Power Rating: 30 Amp/250 Volt
  • Connectors: 1 x NEMA L6-30P - CSA/cUL
                          1 x NEMA L6-30R - CSA/cUL
  • Cable Jacket:: Heavy duty SJT
  • Temperature rating: -20C to 105C degree
  • FT-2 fire rated jacket
  • Ratinngs:  CSA/cUL


Specifications

Length 15'
