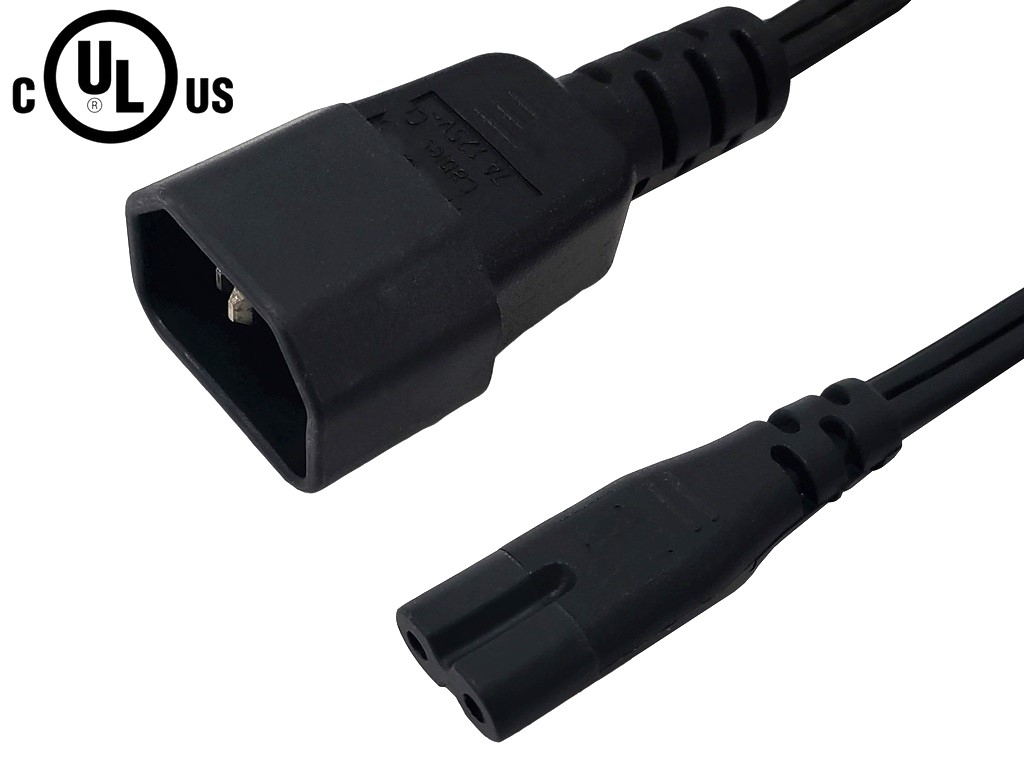

Power Cord IEC C14 to IEC C7 - 18AWG
AC Power Cord C14 Plug to C7 Connector
These power cables are generally used when connecting equipment
that requires a C7, or "Figure 8", two-prong plug to a power
distribution strip that requires a C14 plug.
Male plug inserts into a IEC60320 outlet rated for 250volts and
2.5amps. The female connector attaches to a IEC60320 C8 male inlet
(found on many notebooks and portables).
On the C8 male inlet side both hole housings are
round. The cord only has 2 wires and is non-polarized. ( Figure of
Eight, Calculator/Radio style )
|
Specifications
Voltage: 250 Volt Amperage: 2.5 Amp Male Plug: IEC60320 C14 Female Connectors: IEC60320 C7 Conductors: 2 Wire Jacket: SPT-2 Color: Black |
 |
Technical Notes The Plug, Connector, and Cord are all UL & CSA approved. However because a 3 prong plug is used on a 2 conductor cord UL & CSA will NOT approve the assembly.
# Cablek
- PCC-C14C7-3
- PCC-C14C7-6
- PCC-C14C7-12
Specifications
| Length | 3' or 6' or 12' |
