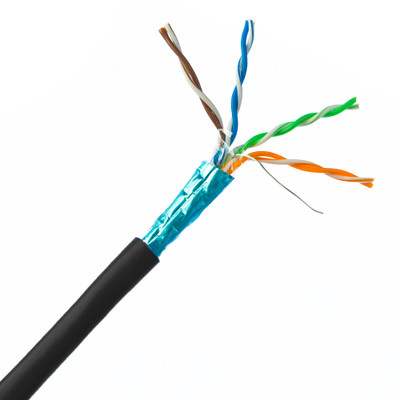

CAT5e 4 Pair 350Mhz Shielded FTP Solid UV / Direct Burial Bulk Cable - Black
Internal Reference:
STP-441CBL6EX/1000
CAT5e Outdoor UV Direct Burial Shielded Cable
This bulk outdoor rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6.20±0.10mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Conductor Diameter | 0.515±0.005mm |
| Cable Shielding | Aluminum Foil Shield |
| Temperature Rating | -40℃ ~ +75℃ |
| UV | Yes |
| Jacket Material | LLDPE |
| Jacket Rating | Direct Burial / UV |
| Jacket Average Thickness | 0.65mm |
| Jacket Minimum Thickness | 0.60mm |
| Insulation | PE |
| Insulation Average Thickness | 0.228mm |
| Insulation Minimum Thickness | 0.205mm |
| Insulation Diameter | 0.97±0.01mm |
| Assembly Diameter | 4.95±0.20mm |
| Twisted Pair Diameter | 1.94±0.02mm |
| Drain Wire (mm) | 0.40 TC |
| Rip Cord | Yes - Nylon |
| Bend Radius | 80mm |
| Electrical Characteristics | |
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
| Aging Condition (℃ x hrs) | 100x168 |
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 30.9lbs [14kg] |
