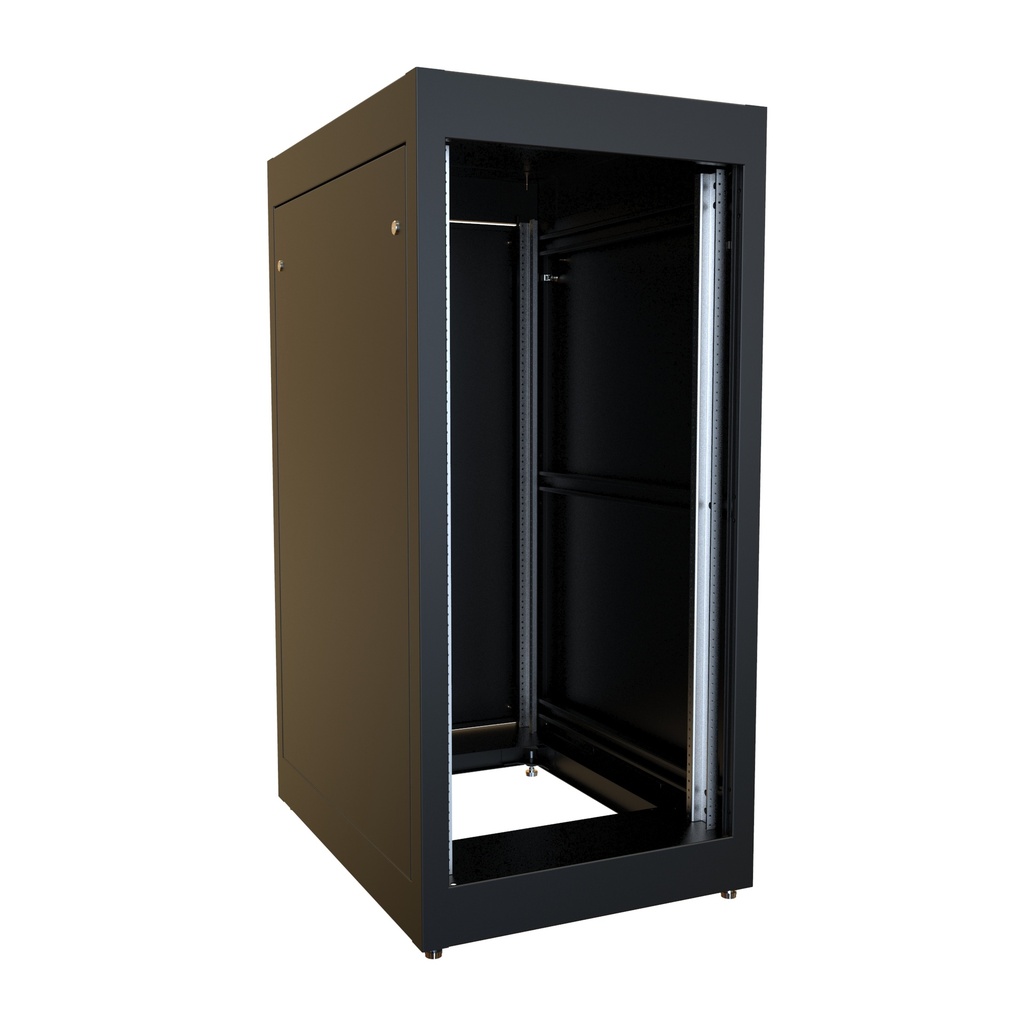

19" Cabinet Kit 24U, Depth 31" Black

Internal Reference :
Description :


    This combination does not exist.

    2,590.00 $ 2590.0 CAD 2,590.00 $

    2,590.00 $

    Availability: In Stock

    Internal Reference: TR-C223-2431

    Equipment Storage Cabinet - 19x42x31 - Black

    Thanks to its weld rack construction this cabinet can have a load of up to 1500 lbs.

     Install and access your equipment easily thanks to removable side panels.

     Optional top accepting up to 4 fans Solid top can be


    • Color: Black
    • Unit is shipped complete (NO ASSEMBLY REQUIRED)
    • Depth 31.5” usable depth 29.5"
    • Heavy duty - Recommended maximum weight (C2F247836 tested) - 1,500 pounds
    • Standard 19” panel width (23” overall width)
    • Unit includes:
      - two removable side panels (with 1/4 turn latches)
      - four infinitely adjustable, tapped combination rack mount rails (full E.I.A. spacing)
      - one solid flush mount door (can be either front or back as rack is symmetrical) - locking with 2 keys
      - solid top
      - four leveling feet
    • Heavy duty 14 gauge steel frame
    • Formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet
    • Welded corner reinforcements
    • Opening in bottom for cable entry
    • Panel rails are zinc plated, 10 gauge steel, drilled and tapped 10-32
    • Finished in a rugged, textured powder paint
    • Manufacturer Hammond PN C2RR194231BK1

    Shipped ASSEMBLED on its own skid for handling ease and protection.

    Shown with side panels removed
    and optional filter fan installed
