USB A Male to 5.5mm x 2.1mm DC Plug Power Cable

Internal Reference :
Description :

  • Length
    • 1'
    • 3'
    • 6'
    • 10'

This combination does not exist.

6.65 $ 6.65 CAD 6.65 $

0.00 $

Availability: In Stock
Quantity:

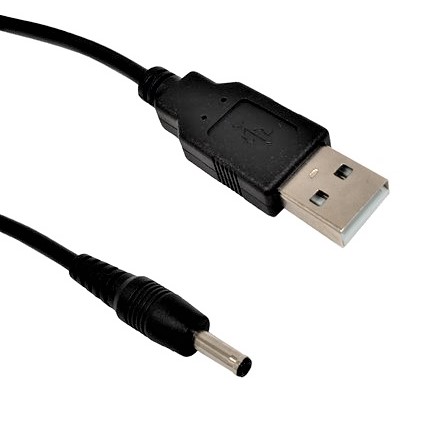

USB A Male to 5.5mm x 2.1mm DC Plug Power Cable


This power cable consists of a USB A male connector on one end and a 5.5mm x 2.1mm male DC connector on the other end. It is typically used to supply power to 5V devices from a USB port rather than a AC/DC transformer.


Specifications

Physical Characteristics
Color Black
Jacket Material PVC
Connector Plating Nickel
Wire Gauge 28AWG
Power Rating 18W Maximum
Voltage Rating 12VDC Maximum
Pinout
USB A Male DC Plug
Pin 1 (VCC +5V)
Pin 4 (GND)
Center Pin
Sleeve
Connector(s)
Connector A 1 - USB A Male
Connector B 1 - 5.5mm x 2.1mm DC Male
Environmental
RoHS Yes
Package Information
Package Quantity 1
Contents
Included in Package 1 - Cable
Cable Weights
1ft 3ft 6ft 10ft
0.06 lbs 0.07 lbs 0.1 lbs 0.13 lbs



Specifications

Length 1' or 3' or 6' or 10'
