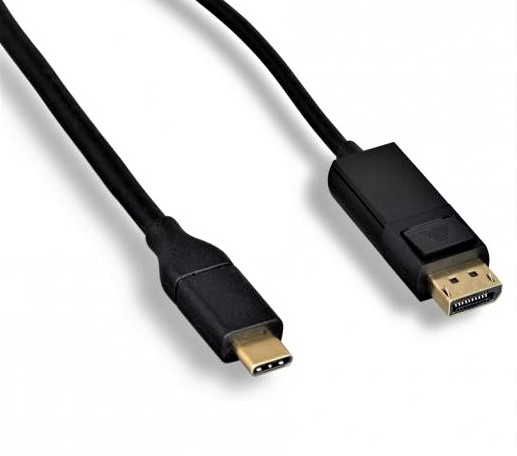

USB3.1 Type C to DisplayPort Cable
USB Type-C to DisplayPort Cables with DP Alt Mode - 8Kx4K 30Hz - TPE Jacket
- USB 3.1 type C to DisplayPort cable
- Connects USB Type C Port to DisplayPort display
- Supports USB 3.1 communication and features
- Supports DisplayPort resolution up to 4K x 2K@60HZ
This Type-C male to DisplayPort male cable supports resolutions of Ultra HD 8K x 4K at 30Hz. It is typically used to connect a Type-C source (PC, Laptop, Mac Computer, Mac Laptop, etc.) to a DisplayPort display (monitors, etc.). This cable is uni-directional, therefore it will only work from a Type-C source to a DisplayPort display and not in the reverse direction.
Ultra High-Definition Resolution
This cable supports maximum video resolutions up to a breath-taking Ultra HD 8K x 4K (7680 x 4320) @ 30Hz.
Gold Plated Connectors
The gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Works Like an External Video Card
This cable can be used for various input devices - for example, connecting your PC to a monitor, in order to extend your PC, laptop, Mac computer or MacBook onto another display.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Cable Type | Active |
| Temperature Rating | 45ºC |
| Connectors | |
| Connector A | Type-C Male |
| Connector B | DisplayPort Male |
| Performance | |
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 8k x 4k (7680 x 4320) @ 30Hz |
| 3D Support | No |
| DP Version | v1.2 |
| Type-C Version | v3.0 |
| Approvals | |
| c(UL)us | Approved Cable |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.19 lbs | 0.32 lbs | 0.53 lbs | 0.90 lbs |
Product appearance and specifications are subject to change without notice.
Specifications
| Length | 3' or 6' or 10' or 15' |
