CONV. HDMI / COMPONENT W/AUDIO
Internal Reference:
VCON-HDMI-YPBPR

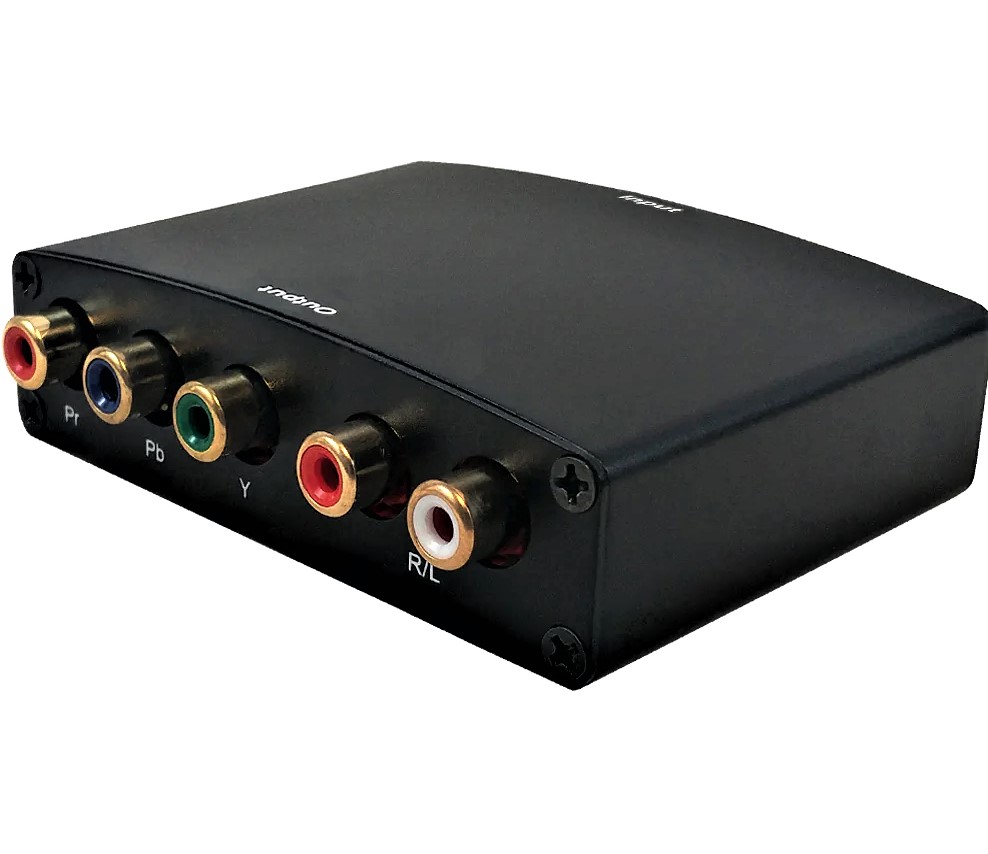

Component Video & RCA Audio to HDMI Converter
This converter consists of a component YPbPr output, a RCA audio output and a HDMI input. It is used to convert a digital HDMI signal to a component YPbPr with audio signal. A typical application would be to connect a DVD or Blu-ray player to a HDTV or TV that has a component connection.
Key Features:
- Easy to Use: Install in seconds, no need of setting
- Conversion: It could convert complete HDMI into YPbPr video and R/L audio output
- Support HDCP 1.2
- Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
- Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
Video Converter - HDMI to Component + Audio Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Power | |
| Power Supply | DC 5V 700mA Adapter |
| Connector(s) | |
| Input | 1 - HDMI Female |
| Output | 1 - Component YPbPr Female (Red,Green,Blue) 1 - RCA Female (Red,White) |
| Performance | |
| Supports | 480p, 720i, 720p, 1080p formats |
| Approvals | |
| Power Adapter | cETLus |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.2 lbs [0.1kg] |
| Package Weight | 0.7 lbs [0.3kg] |
| Contents | |
| Included in Package | 1 - Converter |
| 1 - DC Adapter | |
| 1 - Manual |
