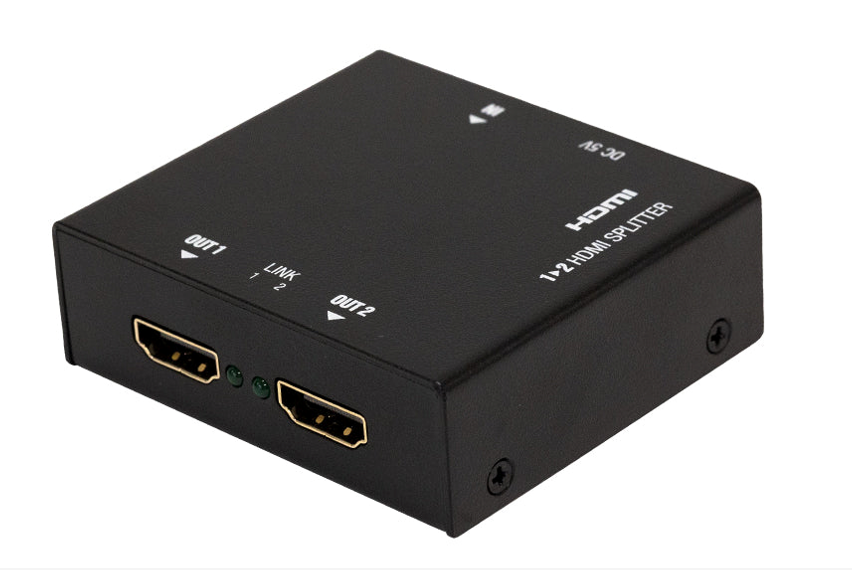

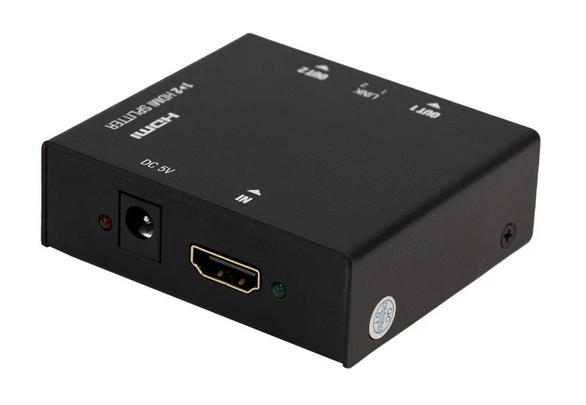

HDMI Splitter 1x2 - 4Kx2K@30Hz - HDCP - EDID - YUV 4:4:4
This 1x2 HDMI splitter enables you to display one HDMI device to two HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Features:
- Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
- Supports resolution up to UItra HD 4Kx2K(3840x2160@30Hz YUV 4:4:4)
- Compatible with HDMI 1.4; video bandwidth up to 10.2Gbps
- Supports PCM2.0, DTS, Dolby, LPCM Max CH7.1
- Supports 3D, copy EDID
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ ~ 35℃ |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power | |
| Input Voltage | AC 100~240V - 50/60Hz 0.2A Max |
| Power Supply | 5V/1A DC |
| Power Consumption | 1W (Max) |
| Compatibility | |
| PC to Monitor | Compliant |
| PC to TV | Compliant |
| DVD to Monitor | Compliant |
| DVD to TV | Compliant |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 2 x HDMI Female |
| Performance | |
| HDMI Resolution | Up to Ultra HD 4K*2K (3840x2160@30Hz YUV 4:4:4) |
| HDMI Version | HDMI 1.4 |
| Bandwidth | 10.2Gbps |
| 3D Video | Yes |
| HDCP Compliant | Yes, HDCP 1.4 |
| Audio | PCM2.0, DTS, Dolby, LPCM Max CH7.1 |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
|---|---|
| Package Quantity | 1 |
| Product Weight | 0.26 lbs [0.11kg] |
| Package Weight | 0.55 lbs [0.24kg] |
| Contents | |
| Included in Package | 1 - HDMI Splitter |
| 1 - DC5V/1A Power Adapter | |
| 1 - Manual |
