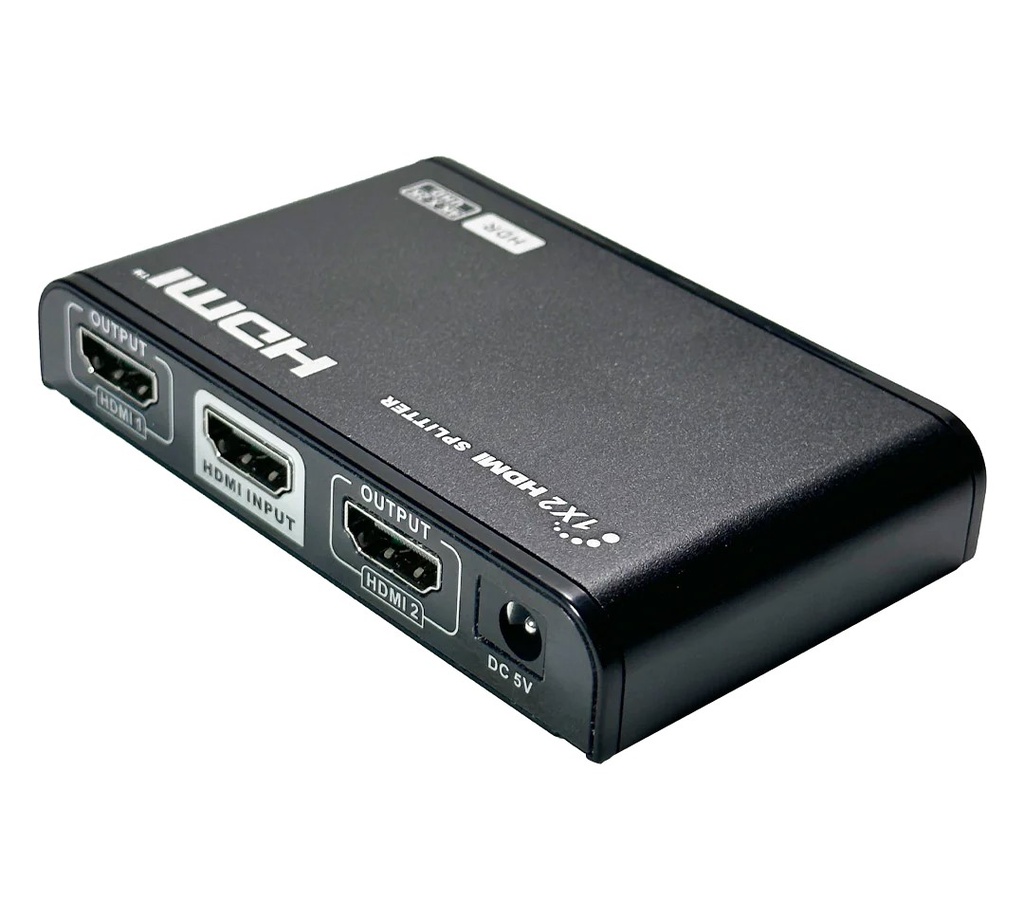

1x2 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4 - Displays one HDMI device to two HDMI displays simultaneous

Internal Reference :
Description :


    This combination does not exist.

    109.90 $ 109.9 CAD 109.90 $

    109.90 $

    Availability: In Stock

    Internal Reference: VSP-HDMI-412F

    1x2 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4

    This 1x2 HDMI splitter enables you to display one HDMI device to two HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.

    Physical Characteristics
    Input Voltage 240V
    Power Supply 5V/1A DC
    Power Consumption <2.5W
    PC to Monitor Yes
    PC to TV Yes
    DVD to Monitor Yes
    DVD to TV Yes
    Input 1 x HDMI Female
    Output 2 x HDMI Female
    HDMI Resolution 480i/480p/576i/576p/720p/1080i/1080p/ 4Kx2K@24/25/30/60Hz
    HDMI Version Compatible with HDMI1.4,HDMI2.0
    3D Video Yes
    HDCP Compliant Yes, Supports HDCP2.2/1.4
    HDR Support Yes
    Audio Support standard audio and DSDï1/4ˆDirect Stream Digital) and HD(HBR) audio
    Frequency Range 25MHz~594MHz
    Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
    Input and output DDC signal 5Vp-p(TTL)
    EDID management Support smart EDID management, available to display different resolution monitors at the same time
    Power Adapter c(UL)us
    RoHS Yes
    CE Yes
    FCC Yes
    Packaging Information
    Included in Package 1 - HDMI Splitter
    1 - DC5V Power Adapter
    1 - Manual
