SDI/HDTV 3 MINI-COAX 500'

https://www.cablek.com/web/image/product.template/34602/image_1920?unique=054f51b

3,889.00 3889.0 CAD 3,889.00

3,889.00

Select to see options

This combination does not exist.


Internal Reference: ZBE-7787A/500

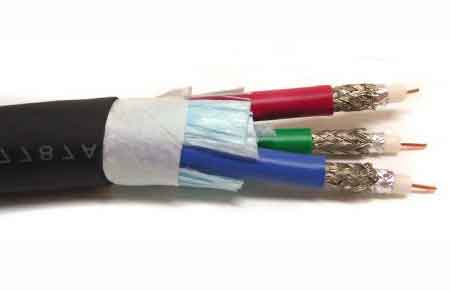

Brilliance VideoFLEX® Snake Cable 3 Coaxial VideoFlex Snake Cable

7787A-500 Feet Coaxial Cable, Bundled Mini 3 Coax, RG59, 23 AWG, 75 ohm

Brilliance VideoFlex Miniature Coaxial Snake Cable for Analog and Digital Applications.

An excellent coaxial cable bundle for running baseband video, s-video, component video, or UXGA video. Also works great for line-level audio and subwoofer audio. The small size of this cable bundle makes it easy to route and hide. The low loss makes long runs >300ft possible.

Provides superior quality signal transfer for short and long runs in both home theatre and broadcast applications. For Analog and Digital Applications.

Not suitable for raw satellite, UHF/VHF, or CATV signals.   Other put-ups available on request. Email us with your requirements.

  • Bundle of 3 "1855A" type coaxial cables See Cablek ZBE-1855A
  • RG Type: 3 Mini Coax Red, Blue, Green
  • Inner Shield Material: Duofoil® + 95% tinned copper braid
  • PVC jacket; overall PVC jacket.
  • Nom OD individual coax .153" - OD Bundle .432"
  • Sweep tested: 5Mhz to 3GHz
  • Black Matte jacket
  • AWG: 23 solid bare copper
  • Ins Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material: Unshielded
  • Nom. Characteristic Impedance: 75 Ω
  • Voltage: 300 V RMS
  • Suitable for indoor and outdoor aerial applications
  • UL/NEC CMR, CEC C(UL) CMG. Flame Resistance: UL 1666 Riser, CSA FT4
  • Full Specifications (GIF)
  • RoHS Compliant
  • Connectors available: "F", RCA, & BNC
  • Operating Temperature Range: -35ºC to 75ºC
  • Bulk Cable Weight:  0.1 lbs/ft. ; 47 lbs/500 ft.
