BELDEN 9504 4 PAIR 24/7 FOIL SHIELD, 300V (price/foot)

SHIELDED CABLE MULTIPAIR, 4PAIR, 24AWG, 300V, CHROME

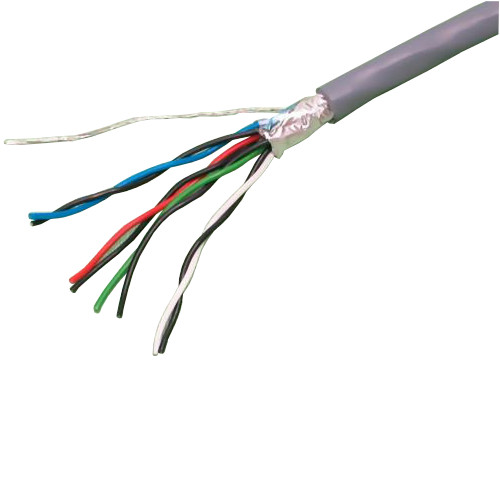

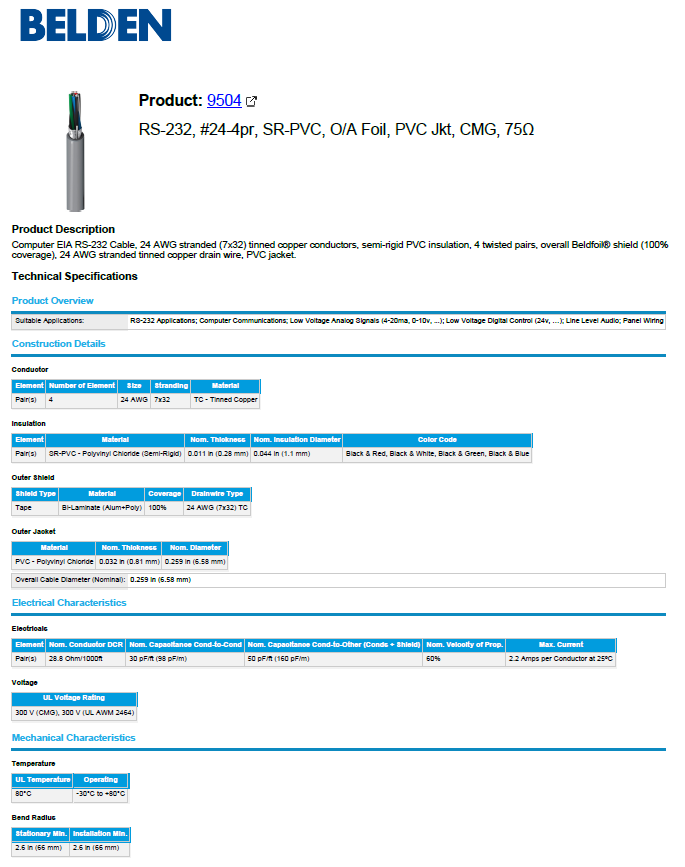

4-pair multi-conductor Computer Cable with 24AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, twisted pairs, overall Beldfoil® aluminium foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.

• 30pF/ft Conductor to conductor nominal capacitance
• 50pF/ft Conductor to other conductor and shield nominal capacitance
• 60% Nominal velocity of propagation
• 24Ω/1000ft at 20°C Nominal conductor DC resistance
• 17Ω/1000ft at 20°C Nominal outer shield DC resistance
• UL1685 Flame tested

Applications

Computers & Computer Peripherals
